128X64 SPI FSTN Graphic LCD Display With White Side Backlight

Product Categories

Hotdisplay Technology Co.Ltd

Contact Now

128X64 SPI FSTN Graphic LCD Display With White Side Backlight

Name: 128X64 SPI FSTN Graphic LCD Display With White Side Backlight
Brand: HOTHMI
Price: 1 USD

China 128X64 SPI FSTN Graphic LCD Display With White Side Backlight wholesale

Brand Name : HOTHMI

Model Number : HTM12864-85

Place of Origin : Dongguan, China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product type : Graphic LCD Module

Show contents : 128x64 dots

Outline size(mm) : 71.0x62.0x7.8mm

Size of View Window(mm) : 65.5x38.8

Display size(mm) : 60.77x32.93

Point spacing(mm) : 0.515x0.475

Visual angle : 6H

Connection PIN Number : 12PIN

Working temperature : -20~70 ℃

Power supply voltage : 3.3 (V)

Driver chip model : ST7565R

Interface method : SPI

Special : with Chinese character library

Contact Now

128X64 SPI FSTN Graphic LCD Display With White Side Backlight

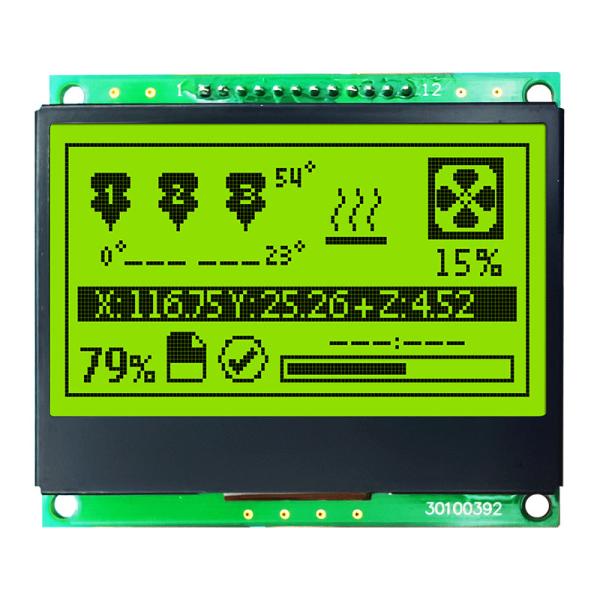

128X64 Graphic LCD Module | FSTN + Display with White Side Backlight/HTM12864-85

HOTLCD 128x64 graphic Liquid Crystal Display module shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM12864-85 display includes built-in negative voltage. It has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

Product parameters

ITEM	STANDARD VALUE	UNIT
Number of dots	128x64	dots
Module dimension	71.0x62.0x7.8mm	mm
View display area	65.5x38.8	mm
Dot size	0.49x0.45	mm
Dot pitch	0.515x0.475	mm
Operating temp	-20~70	℃
Storage temp	-30~80	℃
Driving Method	1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction	6H
Display mode	FSTN
Display type	TRANSMISSIVE / NEGATIVE
Driver IC	ST7565R
Backlight	WHITE
Product application	industrial control, instrumentation
